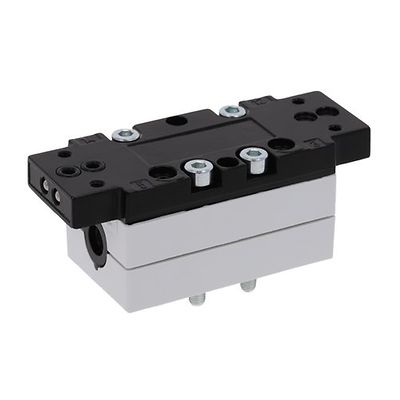

AVENTICS™ 5/3-directional valve, Series 581, size 1 5811780080

Activation

Electrically

Nominal flow Qn

1100 l/min

Switching principle

5/3, exhausted center

Version

Pressurized Center

Compressed air connection output

Base plate ISO 5599-1

Min. working pressure

-0.95 bar

Max. working pressure

10 bar

Actuating control

Double Solenoid

Sealing principle

Soft seal

Pilot

External, Internal

Standards

ISO 5599-1

Pilot valve width

30 mm

Valve type

Spool valve

Blocking principle

Single base plate principle

Connection type

Plate connection

Return

with air spring return

Compressed air connection input

Base plate ISO 5599-1

Compressed air connection, exhaust

Base plate ISO 5599-1

Flow conductance C

4.3 l/(s*bar)

Frame size

ISO 1

Min. control pressure

3 bar

Max. control pressure

10 bar

Min. ambient temperature

-15 °C

Max. ambient temperature

50 °C
