AVENTICS-608011310

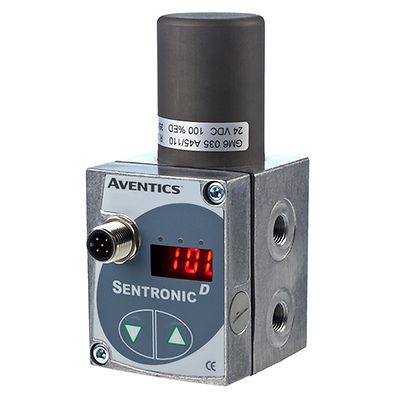

AVENTICS™ 608011310

선정 제품 설명

The AVENTICS Series 608 SentronicD is a 3-way, direct-operated proportional valve with digital control for air or neutral gas. Its fast response times and high sensitivity make it the perfect fit for applications requiring highly precise pressure control. Valve control loop parameters are easily configured and optimized for specific customer requirements using AVENTICS Data Acquisition Software (DaS) and a PC connection. The valve is ideal for automotive and tire, analytical and diagnostic equipment, and bottling applications.

기능
3방향 - 3/2 상시 닫힘
밸브 작동
비례제어
파이프 크기
1/8”, 1/4”
유량
0.2~0.43 Kv, 0.1~0.5 Cv
바디 재질
알루미늄
전압
24 VDC
주파수
50/60 Hz
유체
공기, 불활성 가스, 천연가스, 산소
작동 환경
실내
포트 규격
G ISO228/1-G BSPP, NPTF, 플랜지
표준 및 규정
CE, EAC, IP65

특징

  • 지능형 디지털 커뮤니케이션으로 간편한 작동 가능
  • 이중 루프 제어로 유량, 힘, 속도, RPM, 온도와 같은 공정 변수를 간편하게 구성
  • 통합된 시각적 디스플레이로 밸브 상태 모니터링 가능
  • DaS 소프트웨어로 맞춤형 설정을 선택하여 제어루프 성능 최적화
  • 진공 및 최대 12bar(174psi) 압력 버전 사용 가능
