AVENTICS-G617A42210A0006

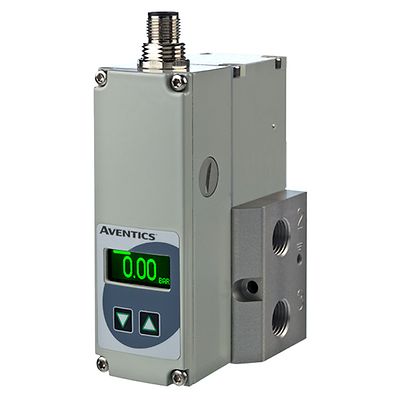

AVENTICS™ G617A42210A0006

선정 제품 설명

The AVENTICS Series 617 Sentronic LP (Low Power) is a family of highly efficient and cost-effective proportional valves with digital control that is ideal for pressure regulation requirements. It offers a small footprint and easy-to-use modular design. Valve control loop parameters can be optimized for a specific application using complementary Data Acquisition Software (DaS) and a PC connection. The valve offers low power consumption (<4 W), has a quick response time and includes integrated IO-Link communication capabilities.

Body Material
Light Alloy
Product Type
Solenoid Valve
Product Weight
0.49 Kg
Ship Weight
0.49 Kg
Media
Air, Inert Gas
Min - Max Ambient Temperature
0 to 50°C
Min - Max Operating Pressure (Air)
0 to 6 bar
Min - Max Fluid Temperature
0 to 60°C
작동 환경
3/2 Normally Closed
포트 규격
G ISO228/1-G BSPP, NPTF, 플랜지
Stroke Length
CE, EAC, IP65
Flow (Cv)
0.58
Orifice Size
4
Voltage
24 DC
Actuation
Proportional
Wattage
3.8
Coil Class
H
Pipe/Port Size
1/4 "

특징

  • 솔레노이드 에어 파일럿 작동
  • 전력 손실 시 압력 유지
  • 디지털 커뮤니케이션 및 제어
  • 데이터 수집 소프트웨어로 제어 매개변수를 간단하게 변경
  • 신속한 설치 및 구성을 위한 옵션 디스플레이
  • 통합 IO-링크 커뮤니케이션 기능
  • 진공 및 최대 10bar(145psi) 압력 버전 사용 가능
