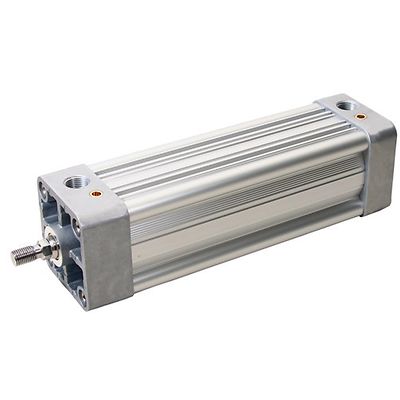

Profile cylinder NFPA, TaskMaster®, Series TM5

Standards

NFPA

Type

Piston rod thread KK1

Piston Ø

38.1 mm

Stroke

203.2 mm

Functional principle

double-acting

Cushioning

Pneumatically

Magnetic piston

with magnetic piston

Scraper material

Polyurethane

Pressure for determining piston forces

90 psi

Retracting piston force

391.46 N

Extracting piston force

707.3 N

Min. ambient temperature

-23.33 °C

Max. ambient temperature

73.88 °C

Working pressure min.

1.38 bar

Working pressure max

10 bar

Ports

3/8 NPTF

Piston rod thread

7/16-20 UNF

Speed max.

2 m/s

Min. medium temperature

-23.33 °C

Max. medium temperature

73.88 °C

Medium

Compressed air

Piston rod

Carbon steel

Material, front cover

Die-cast aluminum

Cylinder tube

Aluminum

End cover

Die-cast aluminum
