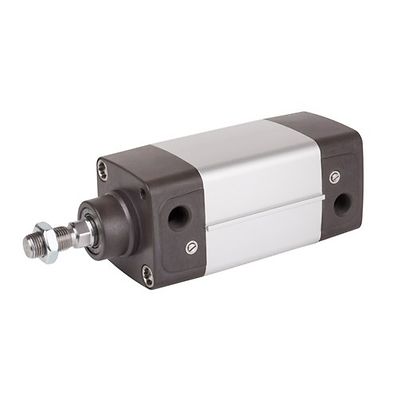

AVENTICS™ ISO 15552, series CCL-IS R481609856

Standards

ISO 15552

Type

Especially high corrosion resistance.

Piston Ø

100 mm

Stroke

80 mm

Functional principle

Double-acting

Cushioning

Pneumatic adjustable cushioning

Magnetic piston

Piston with magnet

Environmental requirements

Industry standard, suitable for use in food processing, Increased corrosion protection

Piston rod

single

Scraper

Standard

Pressure for determining piston forces

6,3 bar

Retracting piston force

4639 N

Extracting piston force

4948 N

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Working pressure min.

1.5 bar

Working pressure max

10 bar

Ports

G 1/2

Piston rod thread

M20x1,5

Cushioning length

19.5 mm

Cushioning energy

88 J

Weight 0 mm stroke

4.42 kg

Weight +10 mm stroke

0.133 kg

Stroke max.

2800 mm

Medium

Compressed air
