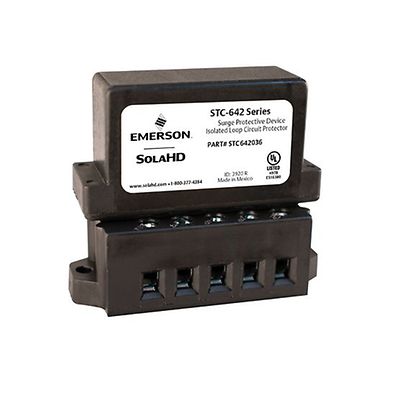

SolaHD™ STC-642 Series Data/Signal Line Surge Protective Devices

구매처
전문가와 상담하기

선정 제품 설명

STC-642 Series Data/Signal Line Surge Protective Devices offer two-pair (four-wire) surge protection modules featuring three-stage hybrid technology. Gas tubes and silicon avalanche components protect equipment from overvoltage transients, while sneak currents are mitigated with resettable fuses (PTCs). These fuses are designed to increase resistance by several orders of magnitude when an over-current exceeds safe levels.

제품

Search
제품 검색결과 2건 중 1-2
:
STC642036
SolaHD™ PN STC642036
인증
UL
입력 전압 범위
36 V
품목 유형
Made to Stock
위상 수
Not Applicable
가용성
인증
입력 전압 범위
품목 유형
위상 수
가용성
UL
36 V
Made to Stock
Not Applicable
작업 공간에 추가
STC642DINKIT
SolaHD™ PN STC642DINKIT
인증
UL
입력 전압 범위
36 V
품목 유형
Made to Order
위상 수
Not Applicable
가용성
인증
입력 전압 범위
품목 유형
위상 수
가용성
UL
36 V
Made to Order
Not Applicable
작업 공간에 추가
1-2/2개 결과

사양

Peak Surge Current (10 times):
8x20 µs at 10kA
Life Expectancy:
8x20 µs (2000A) at >100 occurrences
Response Time:
<1 ns
Resistance:
5 Ohms (typical)
Capacitance:
1500 pf (typical)

특징

  • UL, RoHS
  • Lightning protection for low voltage data
  • Three-stage hybrid protection
  • Sneak/fault current protection
  • Resetable solid-state fuses (PTCs)
  • Low capacitance option for high speed data
  • Plug-in module (includes base)
  • Hybrid design includes series resistance
  • Fast response time
