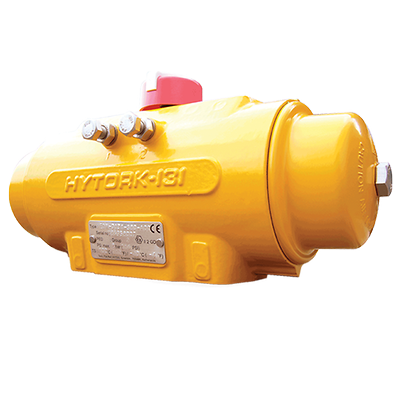

Hytork-H3R

Hytork Excel(XL) 랙 및 피니언 공압 밸브 액추에이터

선정 제품 설명

당사는 작동 제품 부문의 탄탄한 엔지니어링 및 기술을 통해 고품질, 모듈식 액추에이터 설계, 고유한 기능, 고객 혜택, 경제적 비용을 고유하게 결합합니다.

특징

  • 모듈식 구성
  • Actuator internals are protected for corrosion with CEREMIGARD a ceramic-like finish of Di-Aluminium Tri-oxide (Al2O3).
  • A powder-coated surface treatment as standard on end caps and housing provides extra protection against aggressive environments.
  • All moving parts are protected by permanently lubricated and long-lasting DURASTRIP bearings to reduce friction and increases cycle life.
  • Plated with cobalt zinc, the steel pinion is protected from corrosion and features a unique stop design.
  • NAMUR mounting (VDE/VDI 3845) allows standardization of mounting hardware for a wide range of accessories.
  • Hytork XL actuator pinion drives are manufactured to ISO 5211 with a star drive to provide extra flexibility and simplicity for direct mounting to a valve.
  • Large internal air passages maximizes valve operating speeds and adds reliability by reducing potential blockage.
  • The visual position indicator is designed for indication at a glance and can easily be converted from across-line to in-line indication.
  • The bi-directional travel stops allow easy setting of the valve stroke which prevents premature valve failures.
  • Extra large rack and pinion tooth design promotes full tooth engagement. Assists gear tooth life by reducing stress and having precise gear tooth mesh.
  • XL Springs are designed and manufactured never to break. The nested design provides a balanced concentric force on the pistons.
전력원
Pneumatic
제품 유형
공압 액추에이터
작동
Quarter-turn
인증
이 제품은 전기 및 전자 장비에서 특정 유해 물질 사용 제한에 대한 Directive 2011/65/EU(RoHS 2)의 범위에서 제외된 대규모 고정 설비에만 사용해야 합니다.
제어 유형
On/Off, Positioning, Modulating, ESD
밸브 유형
Ball, butterfly, plug and any other quarter turn application
작동 온도
Standard -20°C to +100°C (-4°F to +212°F). Optional high and low temperature options
토크/추력
12 sizes; 19 to 3232 Nm (167 to 28500 lbf.in)
작동 압력
up to 8.3 bar / 120 psi
