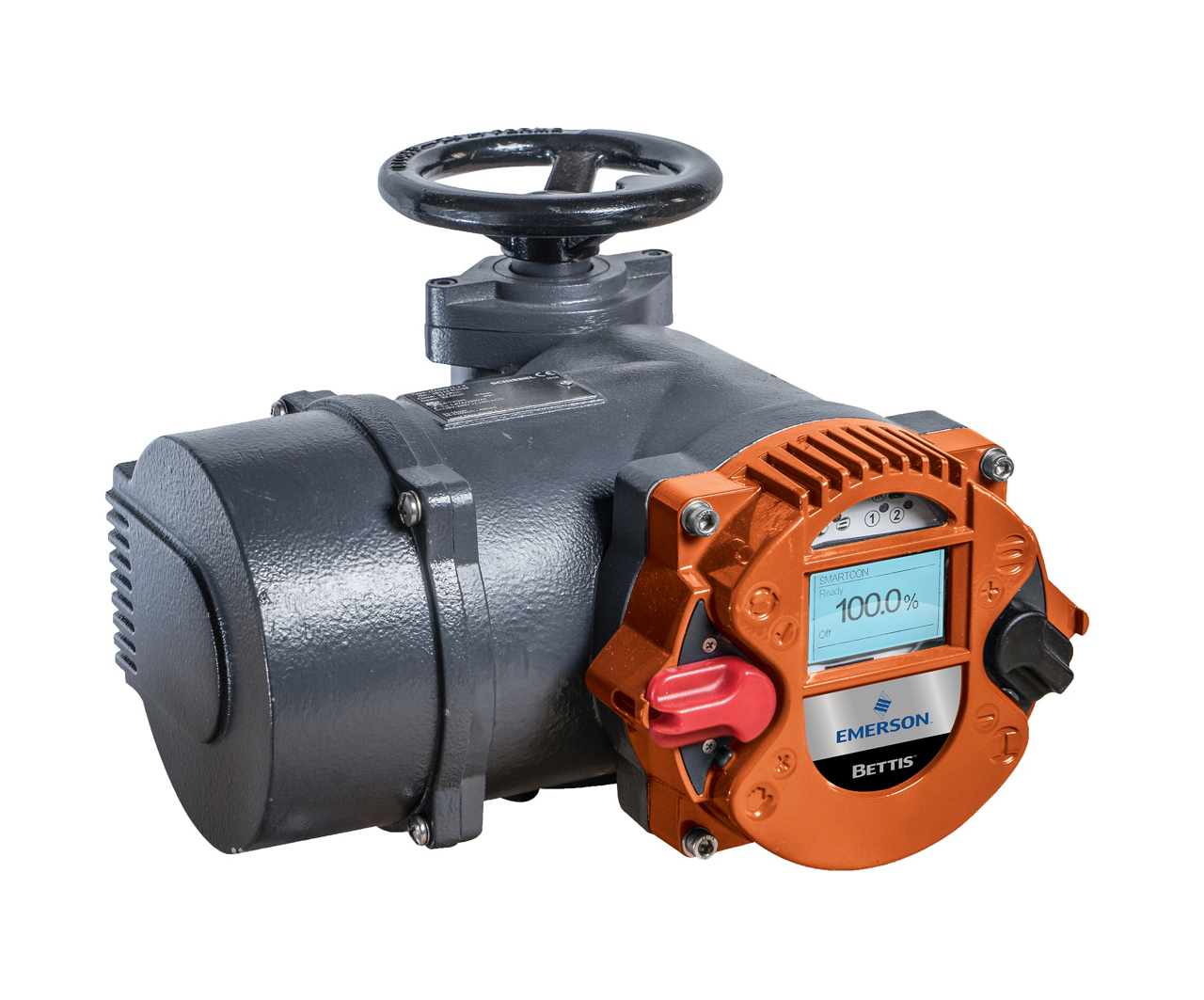

Bettis RTS CM Compact Multi-turn Electric Valve Actuator

A non-intrusive intelligent compact multi-turn electric actuator for ON/OFF and Process control applications. The robust and compact design offers continuous modulation with configurable speed options that are widely used on valves for oil & gas, power, chemical, HVAC, and water and wastewater industries.

주요 기능

Compact & Light weight with corrosion protection
Intelligent and non-intrusive
On/Off (S2/Class A&B) and Continuous modulation (S9/Class D)
Up to 47 lbf-ft (64 Nm) Electric adjustable torque
Adjustable speed (1-72 rpm)
Brushless DC motor technology
Position resolution 0.1%
Rotatable in 90 degree steps control cover with remote mounting option
Local User Interface with wireless Bluetooth® control capability for configuration, monitoring and diagnostics
Optional PID control
