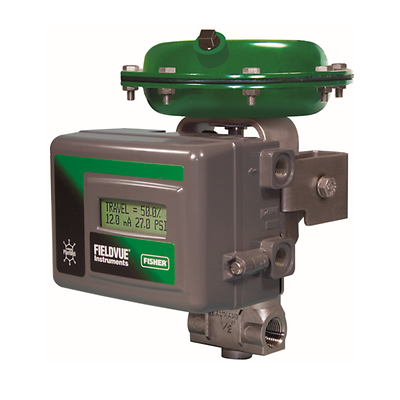

Fisher™ Baumann™ 51000 고압, 저유량 제어 밸브
주요 기능
- Features a compact size.
- Suitable for sticky fluids and corrosive atmospheres.
- Investment cast stainless steel body in 1/4 and 1/2 inch sizes or barstock N10276 nickel alloy. Other alloys available.
- Class VI shutoff with soft seat available. Up to 207 barg (3000 psig) at 37° (100°F).
- Rugged bolted bonnet design.
- Wide flow capacity range. Maximum rated Cv ranges from 0.00013 to 2.5 (0.0002 to 2.16 Kv).
