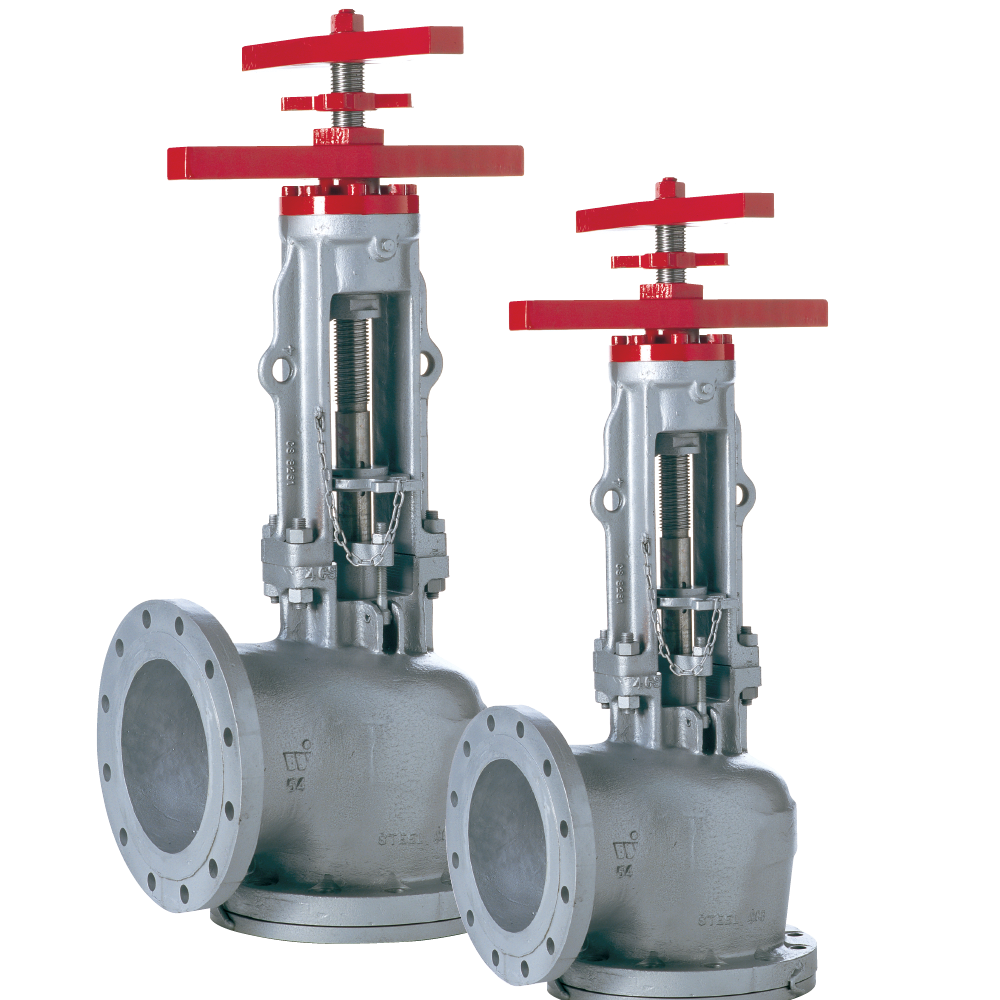

Lunkenheimer Figure F603 Angle Valve

Angle isolation design built to withstand scale and erosion in severe alumina and mining service conditions.

The F603 is an angle isolation valve specifically designed for severe service in alumina and mining applications where scale and erosion are present

주요 기능

Valves can be reground in-line
Designed to ASME B16.34
Heavy duty wall and flange thickness well in excess of ASME B16.34 and ASME B16.5
Pads for fitting drain ports
Tested to API 598
Large stem diameters for strength and stiffness
Stellite 6 hardfacing as standard on disc and ;seat surfaces
Hard facing available on stem
Roller or plain bearings fitted to yoke bush - depending upon size
Manufactured under quality system ISO 9001:2008, Certificate No. MEL 0929678/A
Documentation to EN 10424 1999 Type 3.1B (DIN 50409). Material certification for pressure containing components
