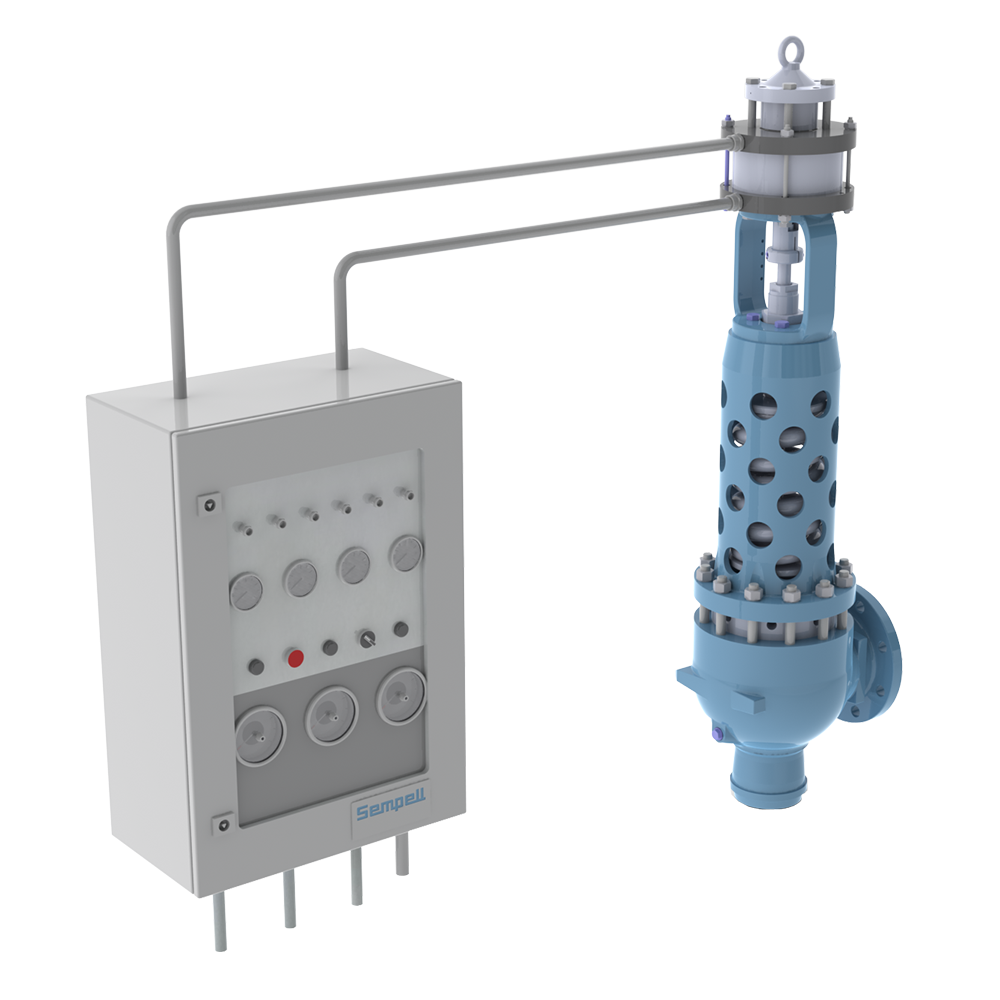

Sempell Model STE5 Pneumatic Control Unit

TÜV type tested Control Unit to operate spring loaded safety valves as Controlled Safety Pressure Relief Sytems (CSPRS) acc. EN ISO 4126-5

주요 기능

High tightness up to set pressure due to supplementary load
Small opening and closing pressure differences
High setting accuracy and reproducibility
Opening possible even below set pressure
Pressure setting of safety valve during normal plant operation
Check of the control function without operation of the safety valve
With one unit more than one safety valve can be operated
In case of failure, the safety valve opens as direct spring valve (fail-safe function)
No electrical energy supply necessary
Ideally suitable for explosion Protection
