Explore Rosemount Magnetic Flow Technology

Magmeter Technology

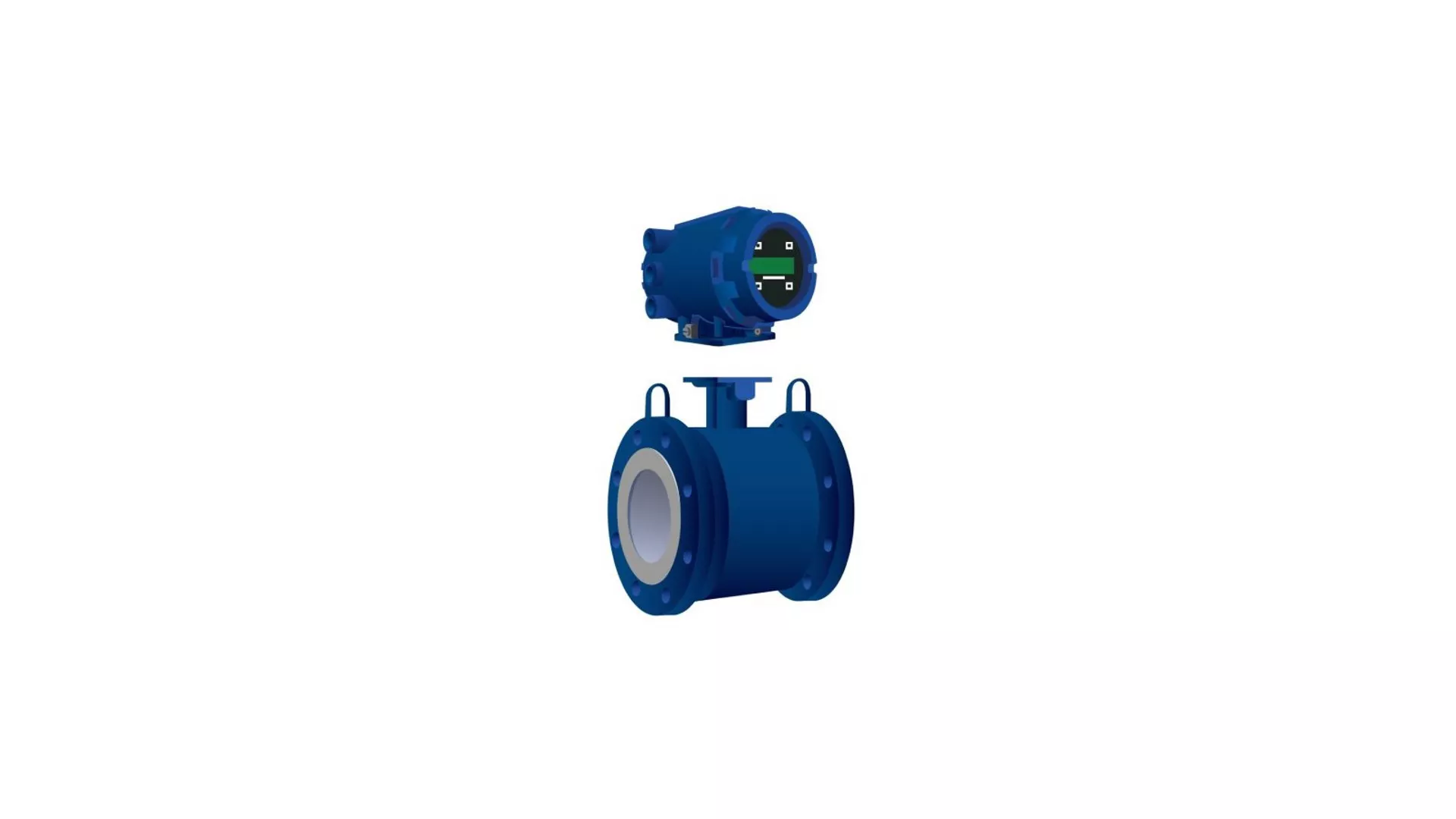

Electromagnetic flow meters, also known as magnetic flow meters or magmeters, provide accurate and reliable flow measurement through a combination of a transmitter and a sensor. The inline sensor of the magmeter detects the induced voltage generated by the fluid as it flows through a pipe. This induced voltage is then converted into a precise flow measurement by the transmitter, which subsequently sends the flow data to a control system. Magnetic flow meters are essential for ensuring accurate fluid measurement in various industrial applications.

How It Works

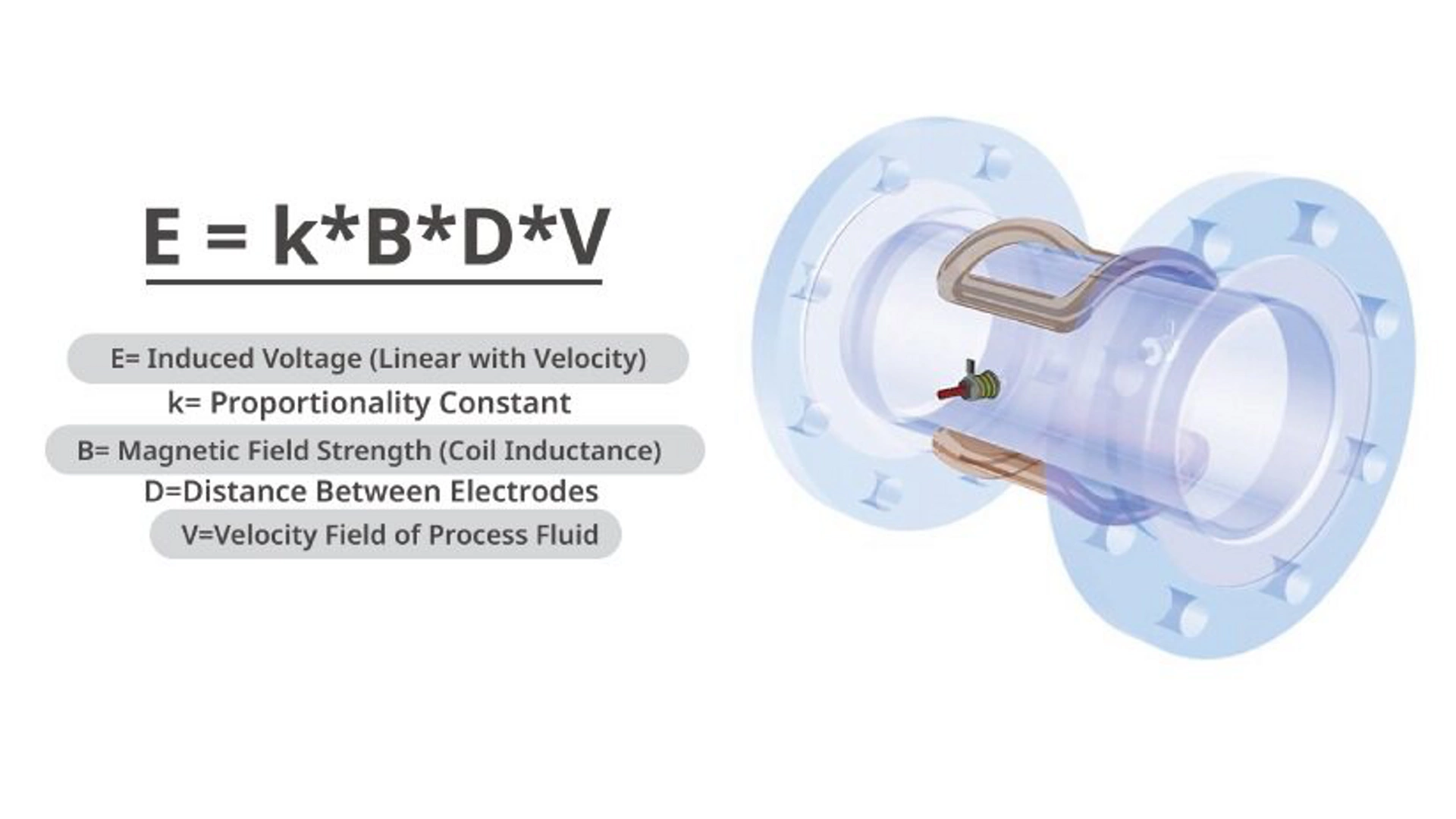

Magnetic flow meters operate using the principle of Faraday’s Law of electromagnetic induction. Magmeters utilize a set of coils and electrodes with the coils powered by an electric current from the transmitter. The applied current creates a magnetic field across the pipe. When the pipe is full and flowing, the force of the magnetic field causes charged particles in the fluid to separate. This separation of positively and negatively charged particles results in an induced voltage between the electrodes. The induced voltage is proportional to flow rate, providing an accurate flow measurement.

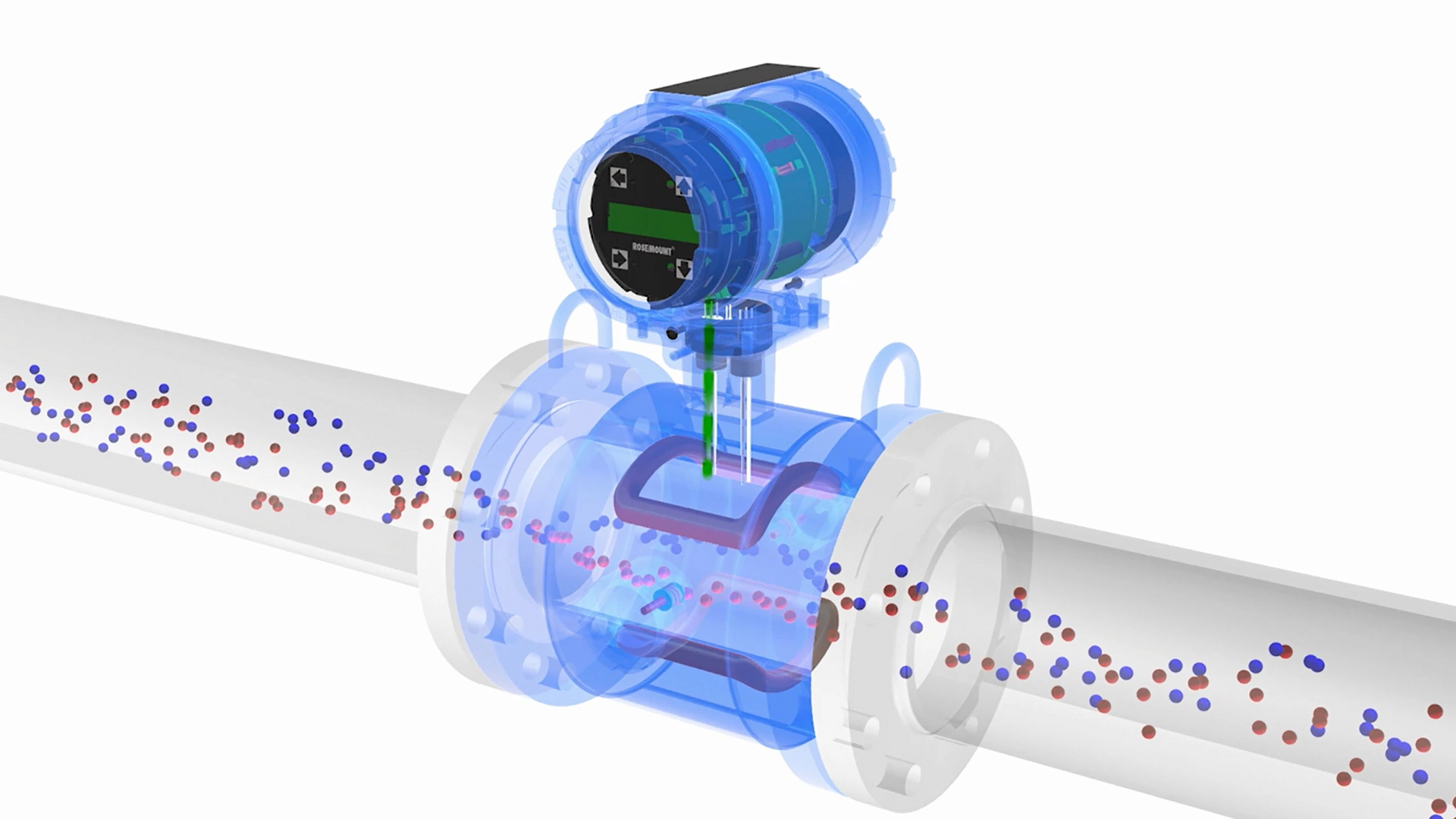

Applications

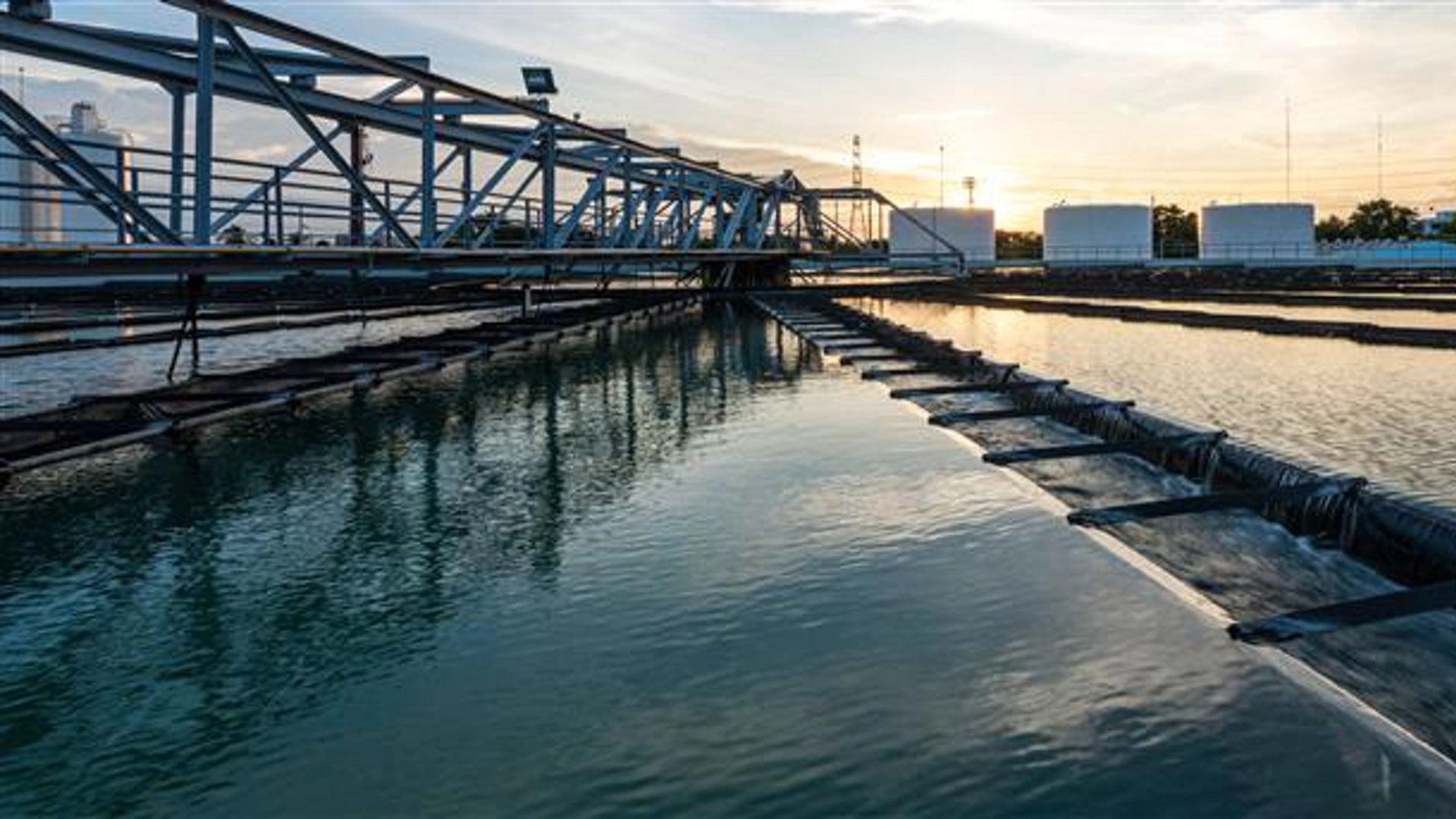

Magnetic flow meters are highly versatile and ideal for numerous conductive liquid applications across industries such as pulp and paper, metals and mining, water and wastewater, food and beverage, chemical and petrochemical, and oil and gas. The obstruction-less, inline design of magnetic flow meters deliver accurate, bidirectional flow measurement without causing permanent pressure loss. They are ideal for both clean and sanitary liquids as well as slurries and abrasive media. This adaptability makes magnetic flow meters the preferred choice for diverse industrial applications.

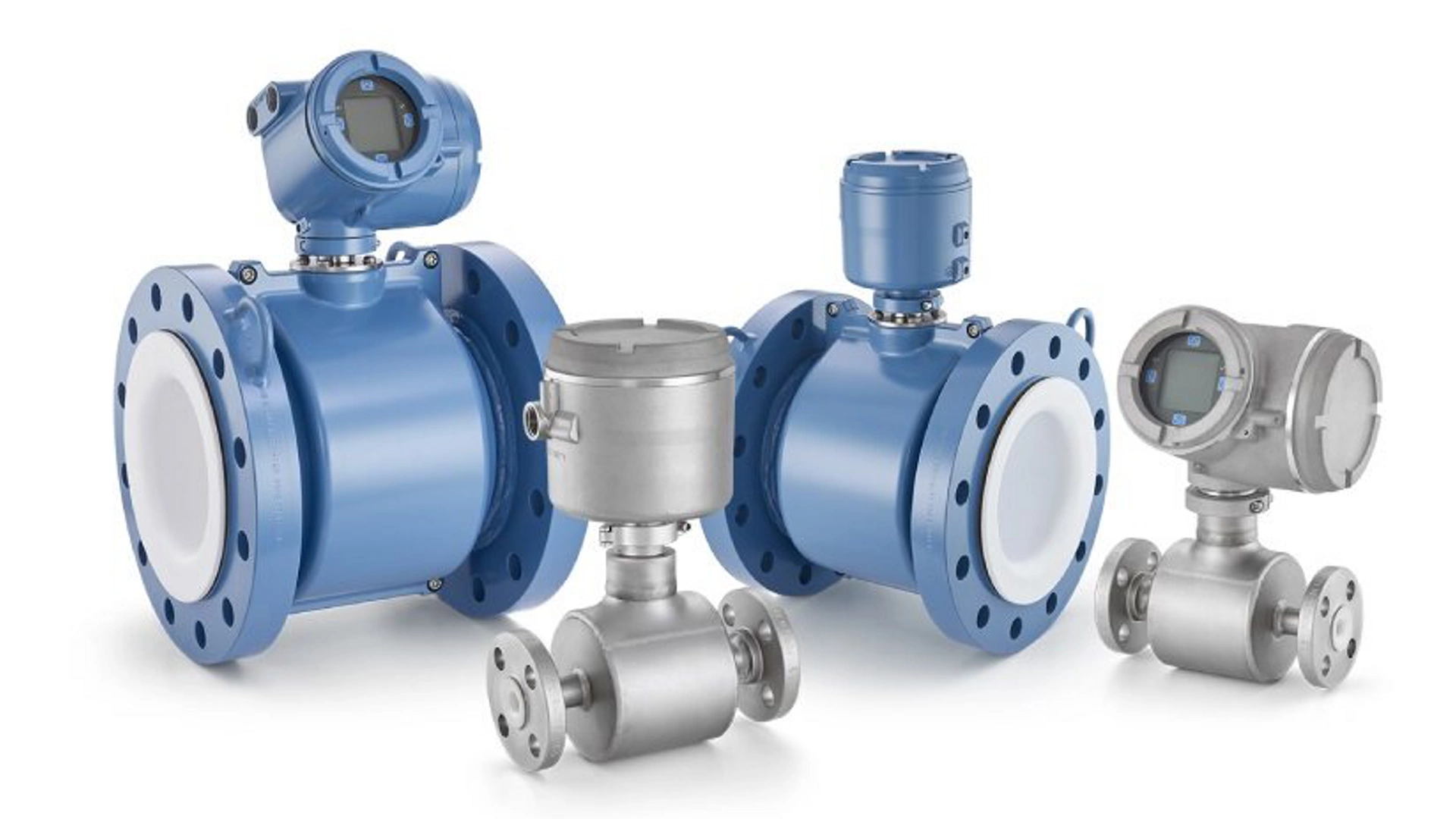

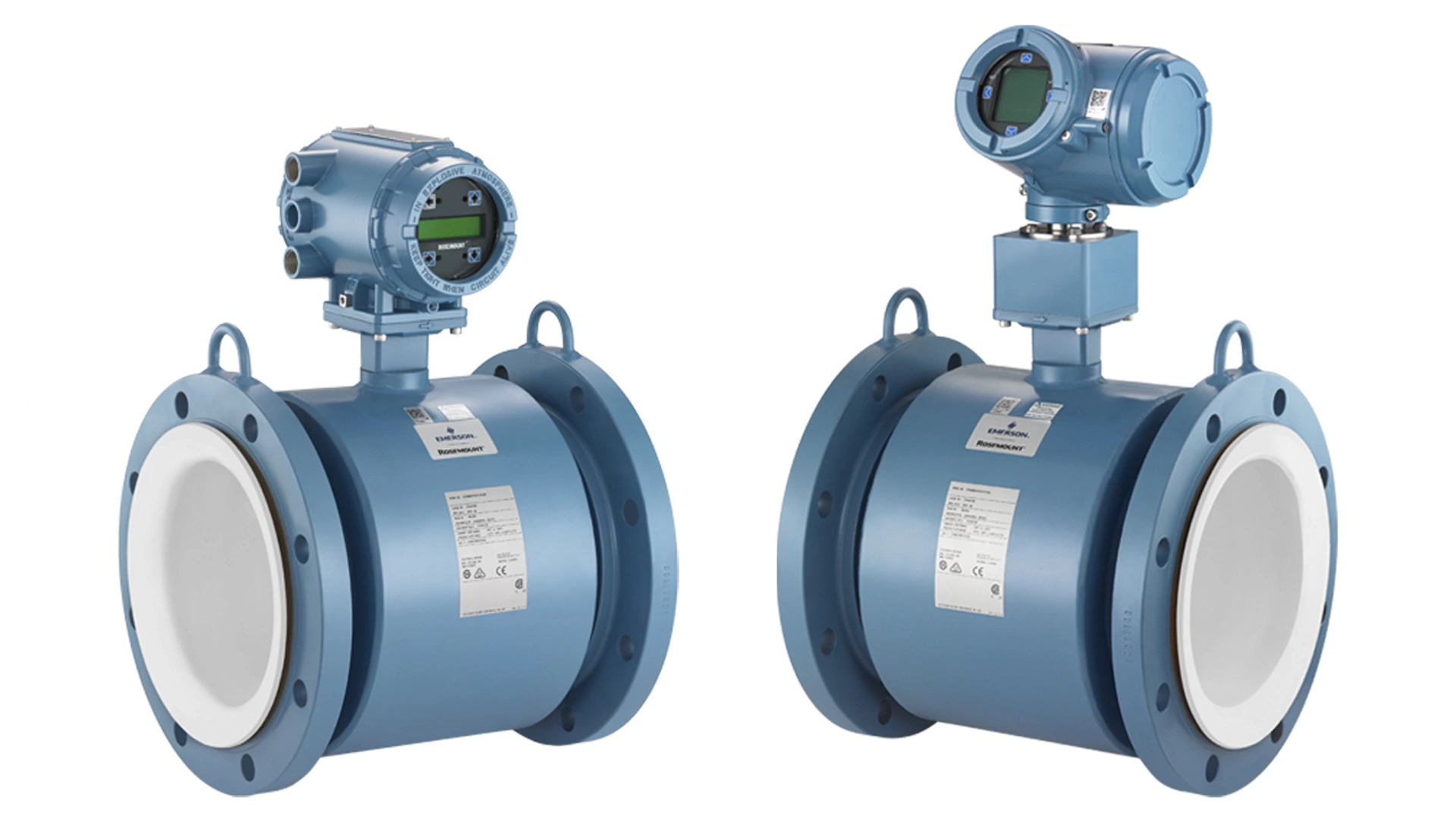

Magnetic Flow Meters - Experience Precision and Reliability with Rosemount Magnetic Meters

Experience Precision and Reliability with Rosemount Magnetic Flow Meters

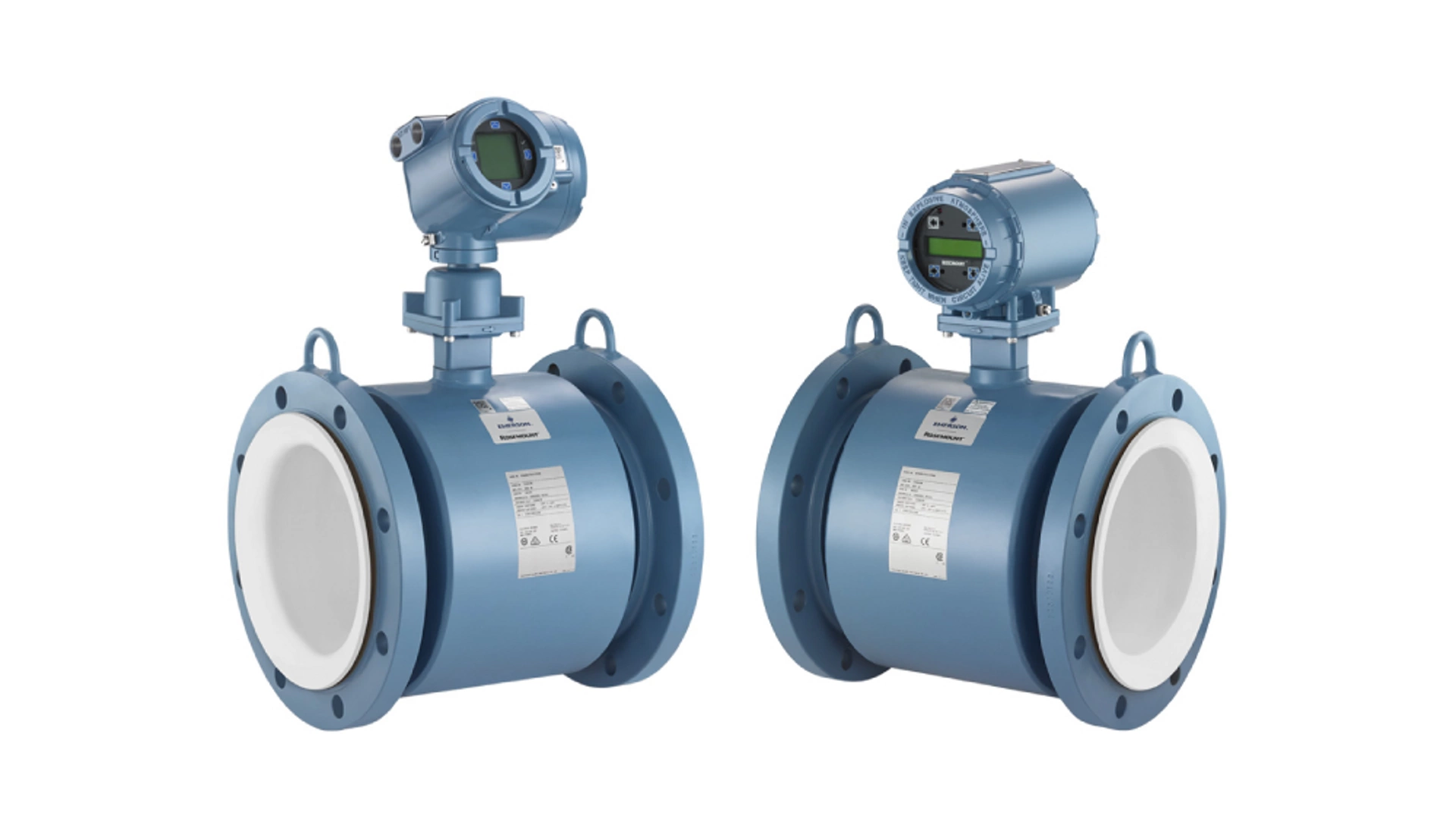

Rosemount Magnetic flow meters deliver highly accurate, obstruction less, and cost-effective volumetric flow measurement for diverse industrial applications. With a variety of liner materials, electrode options, and line sizes, these meters ensure precision and reliability across multiple processes. For demanding, high-noise applications, the Rosemount Slurry Platform provides superior performance with advanced digital signal processing, making it the ideal choice for challenging flow measurement conditions.

Videos

Discover how magnetic flow meters delivers accurate, reliable measurement for various applications. Watch these videos to learn more about the benefits of magnetic flow meter technology.

Introduction to Magnetic Flowmeter Technology

This video introduces magnetic flowmeter technology, explaining how it uses Faraday's Law to measure the flow of conductive fluids. It covers key components like the sensor and transmitter, and highlights common industrial applications.
